Clamp Saddle

CLAMP-SADDLE

CLAMP SADDLE

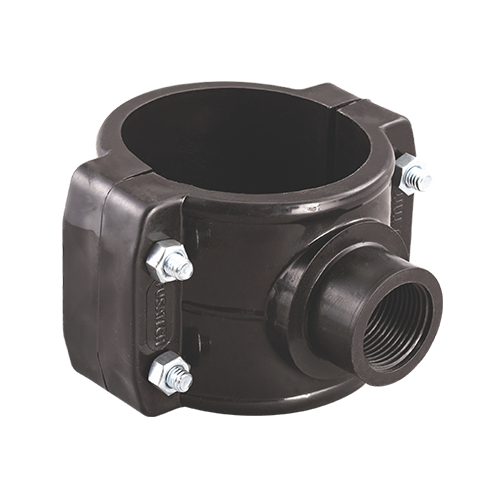

We have carved out a position in offering a wide assortment of Clamp Saddle, which is used to create quick single or double outlets with a nominal pressure of 16 bars. These are designed with in PP black co-polymer, nuts and bolts in zinc chromed steel, o-ring gasket in NB. In addition to this, we offer this quality tested Clamp Saddle to our valued clients at industry leading prices. Also, this is best for branching from existing pipelines for water and irrigation applications. We are offering this clamp saddle in diverse specifications & diameters as per customers requirements.
CODE SIZE D L H H1 T W
S050012 50mm x ½” 50 89 80 17 65 175
S050034 50mm x ¾” 50 89 81 22 65 176
S050100 50mm x 1” 50 89 90 28 65 185
S063012 63mm x ½” 63 107 98 17 72 220
S063034 63mm x ¾” 63 107 98 23 72 223
S063100 63mm x 1” 63 107 98 24 72 225
S075012 75mm x ½” 75 116 113 22 82 308
S075034 75mm x ¾” 75 116 121 30 82 314
S075100 75mm x 1” 75 116 119 28 82 314
S075114 75mm x 1¼” 75 116 118 28 82 313
S075112 75mm x 1½” 75 116 119 29 82 330
S090012 90mm x ½” 90 133 131 22 85 362
S090034 90mm x ¾” 90 133 134 24 85 364
S090100 90mm x 1” 90 133 136 28 85 367
S090114 90mm x 1¼” 90 133 137 28 85 367
S090112 90mm x 1½” 90 133 137 29 85 374
S110012 110mm x ½” 110 159 151 25 92 460
S110034 110mm x ¾” 110 159 153 25 92 463
S110100 110mm x 1” 110 159 159 30 92 465
S110114 110mm x 1¼” 110 159 157 30 92 465
S110112 110mm x 1½” 110 159 160 32 92 47
