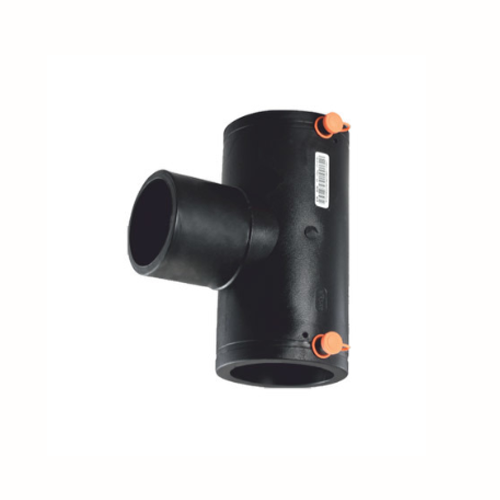

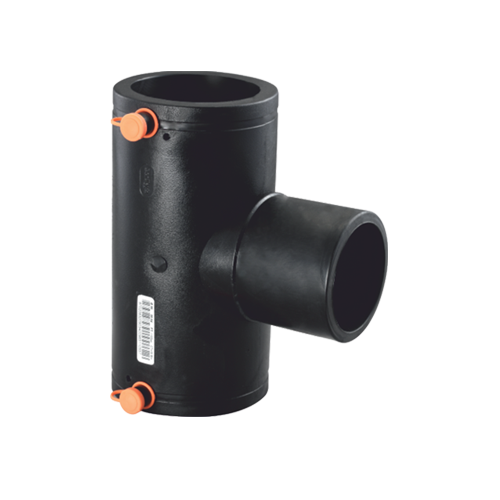

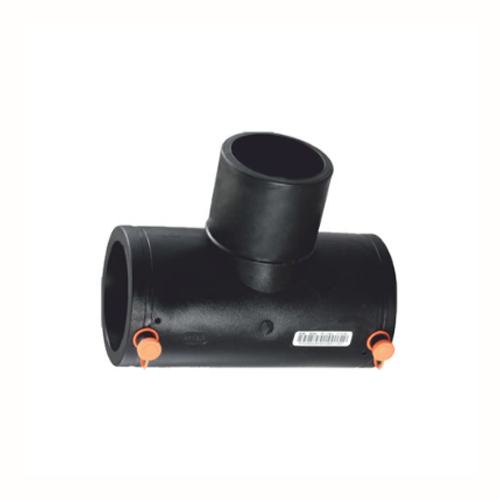

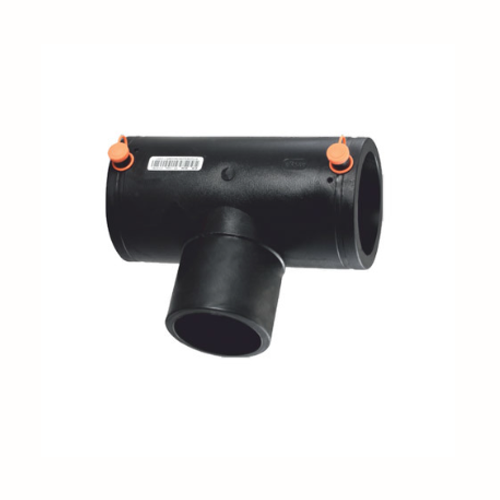

ELECTRO FUSION TEE
We are offering premium quality Electro Fusion Tee, which is used in plumbing industry for the purpose of connecting three pipes end together. This is designed having three openings where one is demanded for fixing to main line and other two for removing wires out for further connections. This Electro fusion Tee can easily bear high pressure and temperature & perfectly meet up with the modern pipelines fitting expectations. Apart from this, we offer this fusion tee in various specifications at very reasonable prices.
| CODE | SIZE | D | L | L1 | T | SDR |
| EFT032020 | 32mm | 46 | 110 | 42 | 70 | 11 |
| EFT050050 | 50mm | 66 | 148 | 53 | 94 | 11 |
| EFT063063 | 63mm | 80 | 175 | 61 | 110 | 11 |
| EFT075075 | 75mm | 94 | 194 | 57 | 124 | 11 |
| EFT090090 | 90mm | 114 | 226 | 71 | 137 | 11 |
| EFT110110 | 110mm | 138 | 248 | 73 | 151 | 11 |
| EFT125125 | 125mm | * | * | * | * | * |
| EFT140140 | 140mm | * | * | * | * | * |
| EFT160160 | 160mm | * | * | * | * | * |
| EFT180180 | 180mm | * | * | * | * | * |
| EFT225225 | 225mm | * | * | * | * | * |
| EFT250250 | 250mm | * | * | * | * | * |
| EFT280280 | 280mm | * | * | * | * | * |
| EFT315315 | 315mm | * | * | * | * | * |
| EFT355355 | 355mm | * | * |
